130MM
Permanent magnet AC servo motor
| Temperature | 0°C-55°C |
| Number of pole pairs | 4 |
| Incremental encode line | 25000/5000PPR |
| Absolute encoder | 17bit |
| Humidity is less than | 90% |
| Insulation class | B |
| Safety class | IP65 |
| Insulation resistance | DC500V, 10M above |
| Vibration | Under 2.5G |
| Altitude | Under 1000m |
| Work system | Continuous |
| Installation Method | Flage installation |

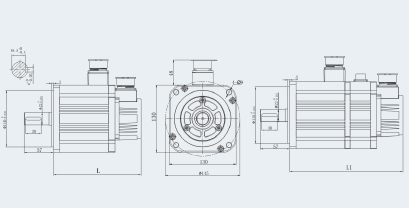

Installation Size Chart unit=mm
