Description
Model : NEMA42 Stepper motor-SM110HS (1.8degree)
General Specification :
Step Accuracy —————————— ±5%
Resistance Accuracy ———————– ±10%
Inductance Accuracy ———————- ±20%
Temperature Rise ————————– 80°C MAX.
Ambient Temperature Range ————- -20°C~ +50°C
Storage Temperature Range ————- -30°C~ +60°C
Insulation Resistance ———————- 100M Ω MIN. 500V DC
Dielectric Strength ————————- 1800VAC for 1S 5mA
Radial Play ——————————— 0.02mm MAX. (450g Load)
End Play ———————————— 0.08mm MAX. (450g Load)
Max. radial force ————————— 220N
Max. axial force —————————- 60N
Electrical Specification:
| Model No |
Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
Lead wires |
Detent Torque |
Rotor Inertia |
Motor Weight |
| ( °) |
(L)mm |
A |
Ω |
mH |
N.m |
No. |
kg.cm |
g.cm |
2 gk |
| SM110HS99-5504 |
1.8 |
99 |
5.5 |
0.9 |
12 |
11.2 |
4 |
3 |
5500 |
5 |
| SM110HS150-6504 |
1.8 |
150 |
6.5 |
0.8 |
15 |
21 |
4 |
5.9 |
10900 |
8.4 |
| SM110HS201-8004 |
1.8 |
201 |
8 |
0.67 |
12 |
28 |
4 |
7.5 |
16200 |
11.7 |

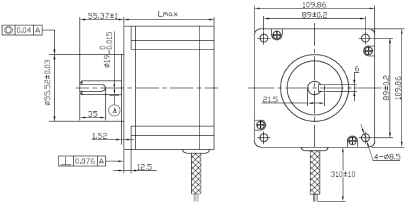

Dimensions : (Unit=mm)

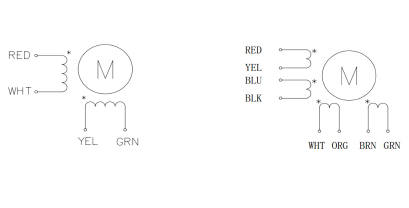

Wiring Diagram
