Description
Model : NEMA52 Stepper motor-SM130H3P (1.2degree)-3phase
General Specification :
Step Accuracy —————————— ±5%
Resistance Accuracy ———————– ±10%
Inductance Accuracy ———————- ±20%
Temperature Rise ————————– 80°C MAX.
Ambient Temperature Range ————- -20°C~ +50°C
Storage Temperature Range ————- -30°C~ +60°C
Insulation Resistance ———————- 100M Ω MIN. 500V DC
Dielectric Strength ————————- 1800VAC for 1S 5mA
Radial Play ——————————— 0.02mm MAX. (450g Load)
End Play ———————————— 0.08mm MAX. (450g Load)
Max. radial force ————————— 220N
Max. axial force —————————- 60N
Electrical Specification:
| Model No |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Voltage |
Holding Torque |
Motor Weight |
| (.) |
(L)mm |
A |
Ω |
mH |
V |
N.m |
Kg |
| SM130H3P-5026 |
1.2 |
170 |
5.0 |
0.80 |
4.10 |
80-325 |
26 |
13 |
| SM130H3P-5036 |
1.2 |
225 |
5.0 |
1.30 |
13.1 |
80-325 |
36 |
18 |
| SM130H3P-5050 |
1.2 |
280 |
5.0 |
1.60 |
17.5 |
80-325 |
50 |
22 |

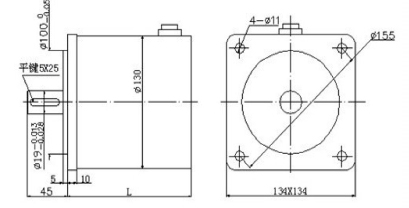

Dimensions : (Unit=mm)

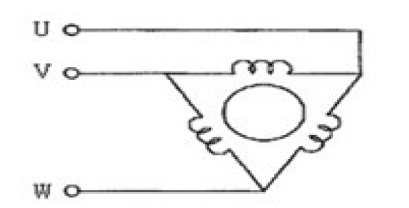

Wiring Diagram
