Description
Model : NEMA52 Stepper motor-SM130HS (1.8degree)
General Specification :
Step Accuracy —————————— ±5%
Resistance Accuracy ———————– ±10%
Inductance Accuracy ———————- ±20%
Temperature Rise ————————– 80°C MAX.
Ambient Temperature Range ————- -20°C~ +50°C
Storage Temperature Range ————- -30°C~ +60°C
Insulation Resistance ———————- 100M Ω MIN. 500V DC
Dielectric Strength ————————- 1800VAC for 1S 5mA
Radial Play ——————————— 0.02mm MAX. (450g Load)
End Play ———————————— 0.08mm MAX. (450g Load)
Max. radial force ————————— 220N
Max. axial force —————————- 60N
Electrical Specification:
| Model No |
Angle |
input Voltage |
Current /Phase |
Resistance /Phase |
Inducta nce /Phase |
Noload Freque ncy |
Starting Frequency |
Holding Torque |
Motor Length |
Motor Weight |
| V |
A |
Ω |
mH |
Hz |
Hz |
N.m |
mm |
Kg |
| SM130HS170-6004 |
80~325 |
6 |
0.75 |
12.6 |
25000 |
2300 |
20 |
170 |
13.3 |
| SM130HS225-6004 |
80~325 |
6 |
0.87 |
14.5 |
25000 |
2300 |
30 |
225 |
18 |
| SM130HS250-7004 |
80~325 |
7 |
0.77 |
12.4 |
23000 |
2200 |
40 |
250 |
19 |
| SM130HS280-7004 |
80~325 |
7 |
0.85 |
14.4 |
23000 |
2200 |
50 |
280 |
22.5 |

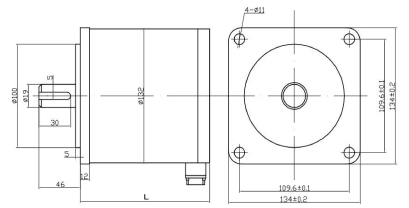

Dimensions : (Unit=mm)

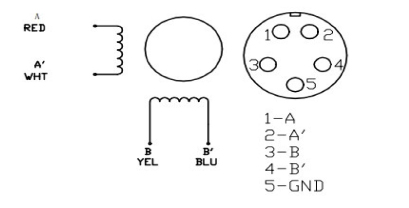

Wiring Diagram
