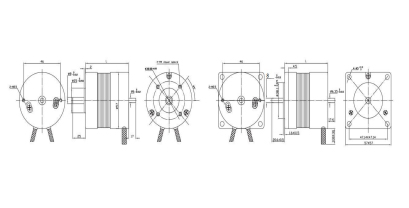

57MM
GENERAL SPECIFICATIONS
| Hall effect angle | electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max. radial force | 75N @ 20mm from the flange |
| Max. axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100M Min., 500VDC |
